Cummins 5.9L 12V Lower Gasket Set: When You Actually Need It

A Cummins 5.9L 12V lower gasket set is used when the repair involves the bottom end of the engine — oil pan, timing cover, rear seal area, or lower sealing surfaces. If you are only removing the cylinder head, you usually need a top set. If the whole engine is coming apart, a full gasket set may be smarter. Arko Tractor Parts carries all three options for the Cummins 6BT 5.9L 12V.

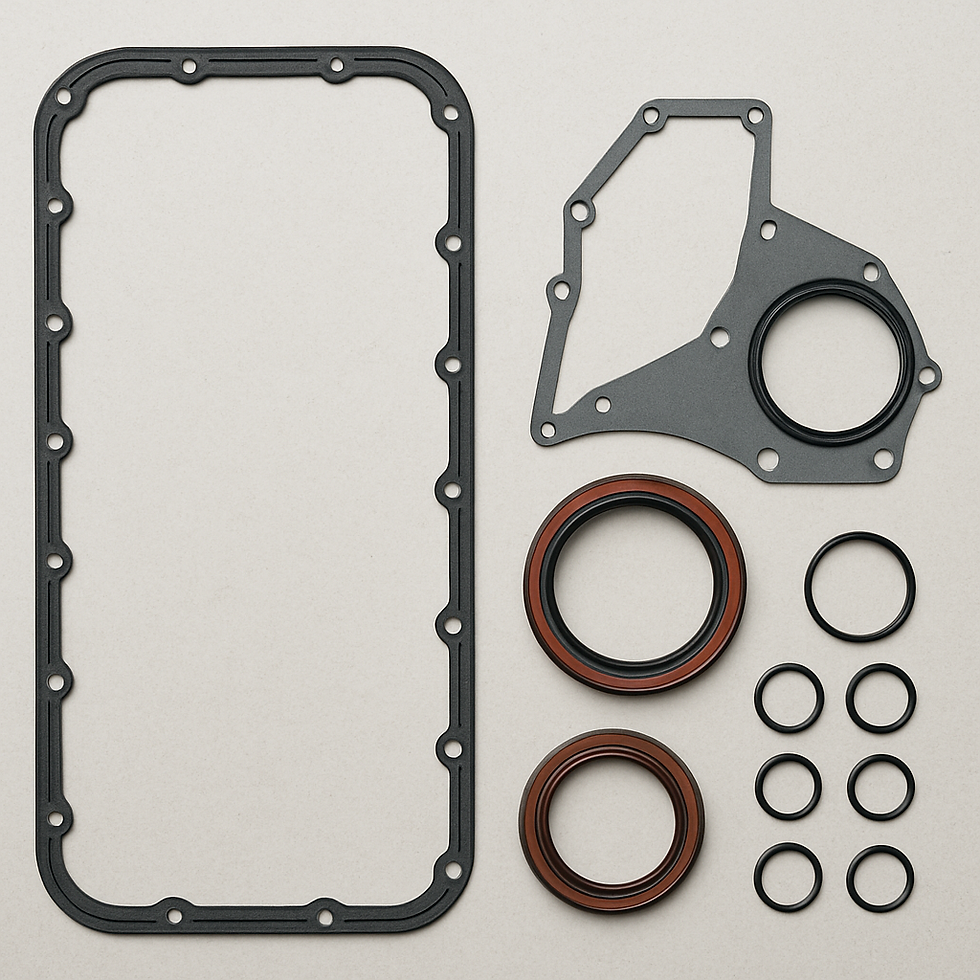

What Is a Lower Gasket Set?

A lower gasket set covers gaskets and seals for the lower half of the engine — oil pan sealing, front cover sealing, rear main seal area, timing cover area, crankshaft seals, and lower engine O-rings. It is not the same as a top head gasket set or a full gasket set.

View the Cummins 5.9L 6BT 12V lower gasket set.

When You Actually Need the Lower Gasket Set

You need a lower gasket set when work is happening around the bottom end or lower sealing surfaces. Common jobs include:

• Oil pan removal

• Front cover repair

• Rear main seal service

• Timing cover gasket repair

• Bottom-end rebuild work

• Oil leak repair from lower engine surfaces

Lower Set vs Top Set vs Full Set

Top Head Gasket Set

Used when the cylinder head is removed — for head gasket replacement, valve work, or overheating repair. View the Cummins 6BT 5.9L 12V top head gasket set.

Lower Gasket Set

Used when the repair involves the lower half of the engine. View the Cummins 6BT 5.9L 12V lower gasket set.

Full Gasket Set

The better choice when both top and bottom of the engine are coming apart. View the Cummins 6BT full gasket set.

Common Symptoms That Point to Lower Gasket Work

• Oil collecting around the oil pan rail

• Oil dripping from the front cover area

• Oil at the rear of the engine near the bellhousing

• Oil loss without obvious top-end leakage

Clean the engine first. A valve cover leak can run downward and make the oil pan area look like the source.

When the Lower Set Is Not Enough

Do not order only a lower gasket set if the repair involves cylinder head removal, head gasket replacement, coolant in oil, valve work, or a full overhaul. In those cases, use a top set or full set.

Field Rule

• Head is coming off → top set

• Oil pan / front cover / rear seal area → lower set

• Entire engine is coming apart → full set

Frequently Asked Questions

What is a Cummins 5.9L 12V lower gasket set used for?

Lower engine sealing: oil pan, timing cover, front seal, rear seal, and lower engine reseal jobs.

Do I need a lower gasket set for a head gasket replacement?

Usually no. Head gasket replacement requires a top head gasket set.

Should I buy a lower set or a full gasket set?

If only working on the lower engine, buy the lower set. If the entire engine is being disassembled, the full gasket set is usually better.

Where can I buy a Cummins 5.9L 12V lower gasket set?

Arko carries the Cummins 5.9L 6BT 12V lower gasket set. Browse the full Cummins engine parts collection.
